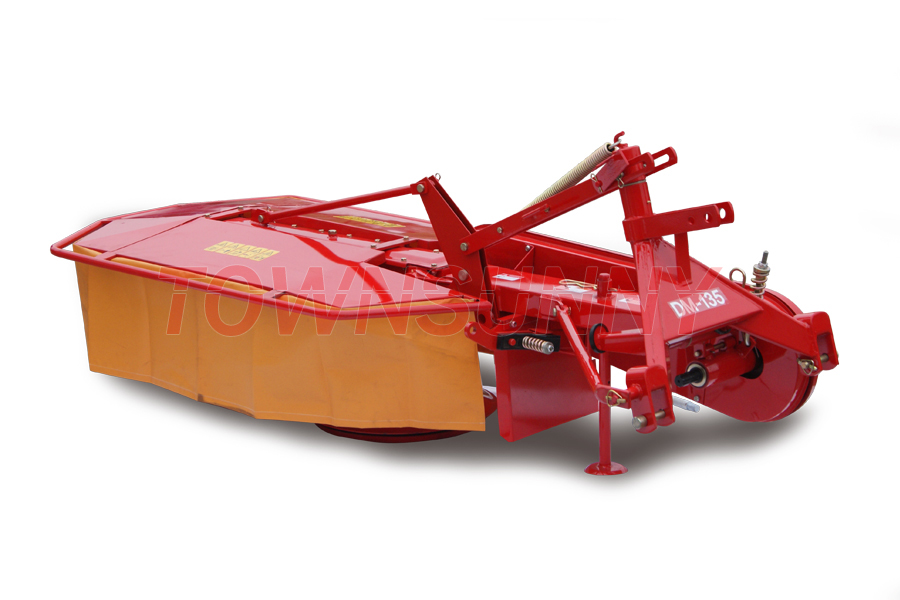

Drum Mower(DM135)
Specifications
| Townsunny Drum Mower(DM135)Specifications | |
| MODEL | DM135 |
| Overall length | 765mm at work 2630mm on road |
| Overall width | 2730mm at work 935mm on road |
| Overall height | 1090mm |
| Working width | 1350mm |
| Working speed | 10km / Hour |
| Working capacity | 13.50acres |
| V-Belt sizes | 17x2650mm |
| Number of cutting discs | 2 |
| Number of cutting blades | 6 |
| Length of cutting blade | 105mm |
| Width of cutting blade | 46mm |
| Thickness of cutting blade | 3mm |
| Connection hole diameter | Ø21 |
| Number of bevel gear pairs | 3 |
| Weight | 310kg |
| Weight with protective canvas System | 340kg |
| PTO speed PTO | 540 |
