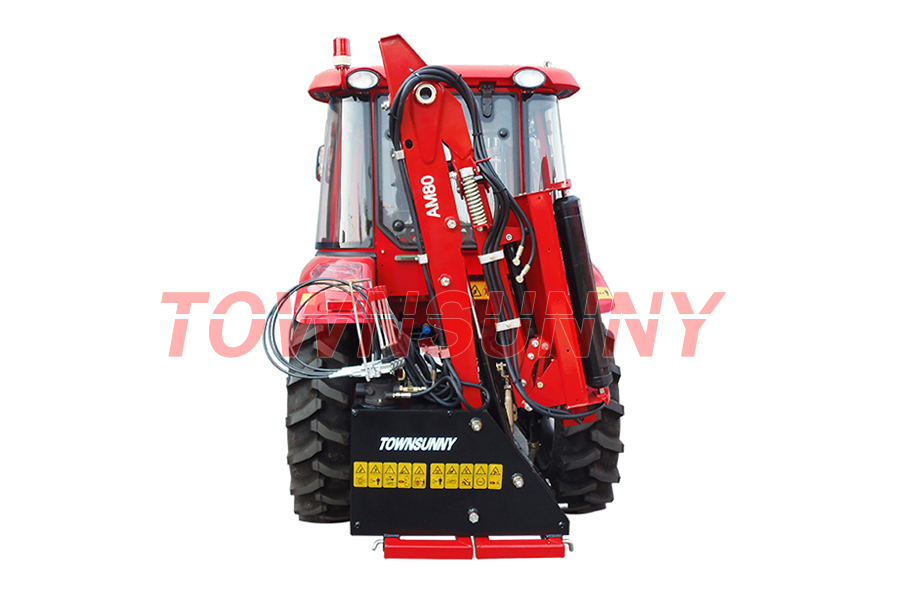

AM80 Mower
Uses:
Compact range for cutting grass and bushes.
Features:
- Mower with side arm
- For tractors 25-50HP tractors (18-37KW)
- Chopping hoed with rollover system
- self-cleaning roller leveler with adjustable height
- direct transmission to the rotor
- Front protection with removable head
- CE safety guards
| AM80 Mower | ||
| MODEL | AM80 | |
| Max Horizontal reach | A | 3167mm |
| Turning angle B | B | 107 |
| Turning angle C | C | 175 |
| Max Height, Horizontal | D | 1605mm |
| Max Height, Vertical | E | 3057mm |
| Max Depth, Horizontal | F | 1627mm |
| Cutter turning angle | H | 324 |
| CUTTING WIDTH(mm) | 800mm | |
| ROTOR SPEED(r/min) | 3000r/min | |
| MACHINE WEIGHT(kg) | 310kg | |
| Oil Tank Capacity(L) | 65L | |
| PTO Speed(rpm) | 540 rpm | |
| Power Required(hp) | 30-45 hp | |
